High Quality 2 Wing Revolving Door, Automatic Door Supplier, Factory

High Quality 2 Wing Revolving Door, Automatic Door Supplier, Factory

Product Details

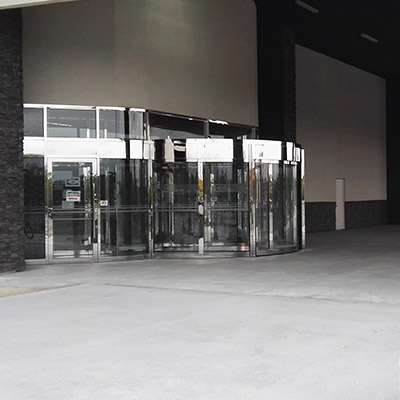

2 wing automatic revolving door is an unique revolving door with "3 in 1 function" - Revolving door +Sliding door+ Balanced door. ENTRANCE SOLUTION’s superior design provides an imposing entrance to any building, while serving as an airlock as well, to minimize a building’s heating or air conditioning losses, therefore maximizing energy savings.


Safety functions:

1. Drum wall load-bearing structure

2. Emergency stop

3. Handicap function

4. Anti-squeeze function

5. Anti-strike function

6. Force-sensitive Control

7. Torque Control Function

8. Safety Relay

9. Panic breakout

10. LED Panel


Technical Data:

Power supply : 220V/50Hz

Rated current : 6A

Rated power : 1200W

Sliding door drive unit : 100W X 2=200W

Revolving door drive unit : 250W X 2=500W

Down lights : 400W

High speed adjustment range(revolving door) : 1- 4r.p.m.

Low speed adjustment range(revolving door) : 0.5-1.5 r.p.m


Specifications:

Inner Diameter (D)3600mm4200mm4800mm
Outer Diameter (OD)3680mm4280mm4880mm
Total Height (TH)2640mm2640mm2640mm
Clear Height2300mm2300mm2300mm
Canopy Height340mm340mm340mm


Main components:

1. Control unit : SIEMENS

2. Operating software : ENTRANCE SOLUTION

3. Transducer : SIEMENS

4. Revolving door motor : SIEMENS

5. Gear box of revolving door : Sewdrive

6. Sliding door motor : ENTRANCE SOLUTION

7. Reduction belt : CONTITECH

8. Key switch : ENTRANCE SOLUTION, Six splines

9. Working mode selector : ENTRANCE SOLUTION

10. Revolving door detecting radar : BEA

11. Sliding door detecting radar : BEA

12. Reduction photocell : BEA

13. Anti-strike photocell : BEA

14. Anti-squeeze radar : PEPPERL

15. Anti-strike radar : PEPPERL

16. High precision speed /position radar : HENGSTLER

17. Emergency stop button : ENTRANCE SOLUTION

18. Safety switch: ENTRANCE SOLUTION

19. Glass : YAOPI

20. Aluminum alloy frame : JIHUA

21. Ceiling spot light : PHILIPS
