ERA6 series Crystal Revolving Door

ERA6 series Crystal Revolving Door

Product Details

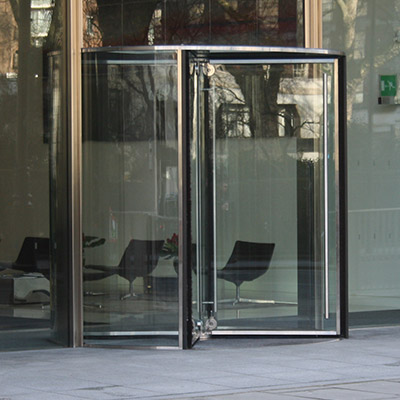

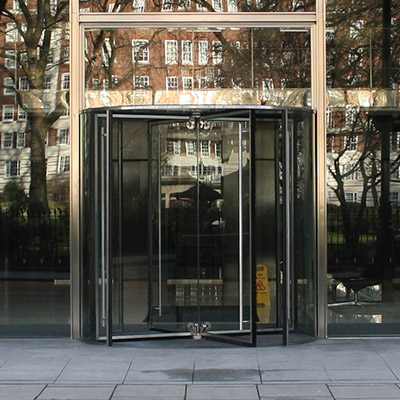

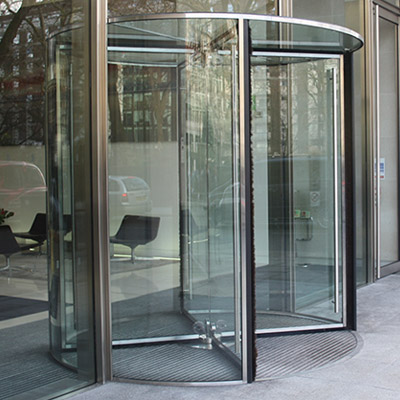

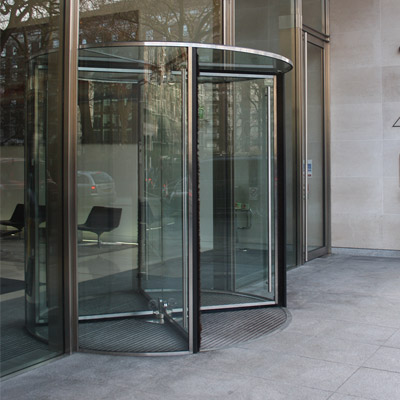

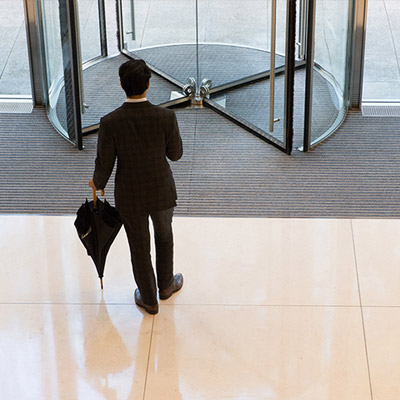

Crystal /All glass revolving door is made of a special safety glass, featuring a unique structure and an impeccable appearance. As the revolving door is designed without a central column, clearer visibility allows it to become sparkling and more elegant. With ENTRANCE SOLUTION’s unique music note style clamp, the crystal revolving door incorporates exceptional mechanic s with aesthetics, with safety and beauty both increased.


Safety functions:

1. Special drum wall load-bearing Structure . ENTRANCE SOLUTION revolving door use exclusive drum wall load-bearing structure, which allow the door have better stability, especially when comparing the doors with pillar-bearing structure.

2. Vertical /horizontal safety switch . All the ENTRANCE SOLUTION automatic revolving door could assemble vertical and horizontal safety rubber, which is sensitive enough to keep people safe .

3. Anti-squeeze function. All the ENTRANCE SOLUTION automatic revolving door assemble the anti-squeeze sensor in the canopy, which keep people safe from squeezing of the door wings .

4. Anti-strike function.There are detective radars in the canopy of the revolving door, when people approached, the speed of the door wings will turn slowly, keep people safe from striking .

5. Force-sensitive Control. If the resistance of ENTRANCE SOLUTION revolving door wings encounter exceeds a preset value, the door will stop.

6. Torque Control. When the distance between the moving door wing and the fixed one is less than a certain space, the drive power output from the motor will reduce to a safe level, so that the pedestrian will not be hurt even if all the sensors of the revolving door are breakdown.

7. Panic breakout system. All the wings of ENTRANCE SOLUTION revolving door could be folded in one, which make the passage way wide enough for people to pass.

8. Handicap button. This button is used to control the speed of the revolving door and slow it down for the safety of younger, older and disabled passersby.

9. Night Security Door. Make ENTRANCE SOLUTION revolving door close in the night, which provides extra protection to the building.


Types Of Installation:

The Installation of ENTRANCE SOLUTION all glass revolving door include 2 types, the “ Underground ” and “ Cross Slab ” types.


Drive and Control System:

World’s top level system is adapted, SIEMENS main control unit, transducer, drive unit to ensure the stable of the whole revolving door.


Glass with higher Quality

All the glass of ENTRANCE SOLUTION revolving door could meet the requirements of the international standards.

1. Curved glass is 16mm(8+8) , clear laminated glass.

2. Flat glass is 12mm , toughened glass.

3. Ceiling is constructed of 16mm(8+8), semi-laminated and semi -toughened safety glass.



Music Note style clamp:

The music note style clamp is one of ENTRANCE SOLUTION’s most distinguished patents. It’s similar to the musical notes. The clamp’s round shape makes the bearing points of the edge distribute pressure equally, keeping the door body steady and firm. This system has proven an impeccable safety record for ENTRANCE SOLUTION all glass revolving doors.


Adjusting Tool:

SIEMENS BOP and TD400 are used for ENTRANCE SOLUTION revolving door setting.


Working Modes:

Continuous working mode.

Start/Stop working mode .


Technical Data:

Power supply : 220VAC±10%,50HZ

Power Consumption : 360W/AC

Main Fuse : 5A

Range of high speed adjust :1-4r.p.m.

Range of low speed adjust : 0.5-2.5 r.p.m

Ambient temperature : -25 degree ~ 50 degree

Ambient Humidity : <90%


Key Components:

1. Main control unit : SIEMENS

2. Operating programed software : ENTRANCE SOLUTION

3. Transducer : SIEMENS

4. Revolving door motor : SIEMENS

5. Revolving door gear box : Sewdrive

6. Mechanical lock : ENTRANCE SOLUTION

7. Reset button : ENTRANCE SOLUTION

8. Detection radar of revolving door : BEA

9. High precision speed/position radar: HENGSTLER

10. Safety anti-striking device : PEPPERL

11. Emergency stop button : ENTRANCE SOLUTION

12. Handicap button : ENTRANCE SOLUTION

13. Outer wall glass : YAOPI, 8+8mm laminated glass

14. Door wing glass : YAOPI12mm toughened glass

15. Top cap glass : YAOPI Safety glass toughened treatment

16. Aluminum frame profile : JIHUA
